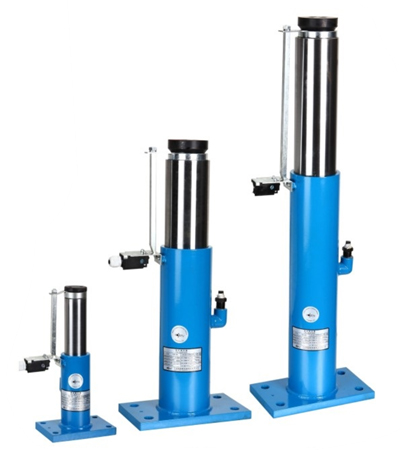

Type A: Built-in Spring

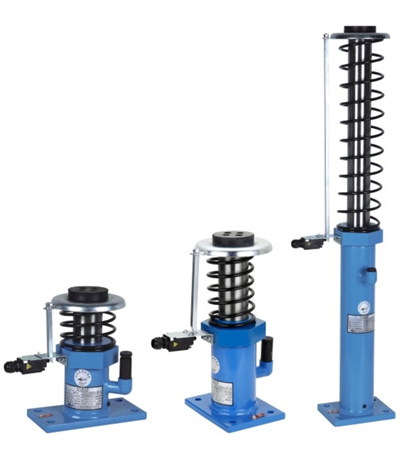

Type B: Outside Spring
| Type | Model | Rated Speed(m/s) | P+Q(Kg) | Plunger Stroke(mm) | Static Height(mm) | Installation size(mm) | Oil Mass(L) |
|---|---|---|---|---|---|---|---|
| A | PDF05-10 | ≤1.0 | 300-2500 | 100 | 390 | 90*150 | 0.5 |
| A | PDF05-16 | ≤1.6 | 700-5300 | 175 | 625 | 100*210 | 1.7 |
| A | PDF05-20 | ≤2.0 | 1000-5300 | 290 | 915 | 100*210 | 2.6 |
| B | PDF05-65 | ≤0.63 | 500-4600 | 65 | 350 | 100*150 | 0.45 |
| B | PDF05-70 | ≤1.0 | 300-2500 | 70 | 305 | 80*210 | 0.5 |
| B | PDF05-80 | ≤1.0 | 600-3000 | 80 | 315 | 90*150 | 0.4 |
| B | PDF05-175 | ≤1.6 | 600-3000 | 175 | 510 | 90*150 | 0.6 |
| B | PDF05-210 | ≤1.75 | 700-3600 | 210 | 600 | 90*150 | 0.8 |
| B | PDF05-220 | ≤1.75 | 600-2500 | 220 | 780 | 80*210 | 1.3 |
| B | PDF05-275 | ≤2.0 | 800-3800 | 275 | 790 | 80*210 | 1.5 |
| B | PDF05-425 | ≤2.5 | 820-3600 | 425 | 1130 | 100*150 | 2.5 |
